Junghans J32
- Kind:
- Standard Watch
- Production:
- 1922
- Type:
- Open face
- Variants:
- J32
- Catalog Group:
- 103
- Size:
- 18,5"
- Outer Diameter:
- 42,0 mm
- Nominal Diameter:
- 41,4 mm
- Height:
- 6,0 mm
- f:
- 18000 A/h
- Power reserve:
- 40h
- Balance staff:
- U418
- Stem:
- W300
- Mainspring:
- 2f3641
460 x 2,20 x 16,0 x 0,20 mm
Junghans mentions spring number
1007 450 x 2,25 x 0,205 mm - Reference picture:
- F.W.S 1947 page 74
- Jewels:
- 7
- Liftangle:
- 36°
Junghans catalog 1923
Although we commenced watch manufacturing at a comparatively recent date our watches have already, owing to their high quality and reliability, gained a world-wide reputation. Our method is: Utmost precision in the production of all parts, ruthless removal and destruction of all parts which are found to be in the least faulty or inexact, assembling, examination and regulation by proved experts. This system ensures equal high quality of all our watches and absolute interchangeability of all parts.
Page 12

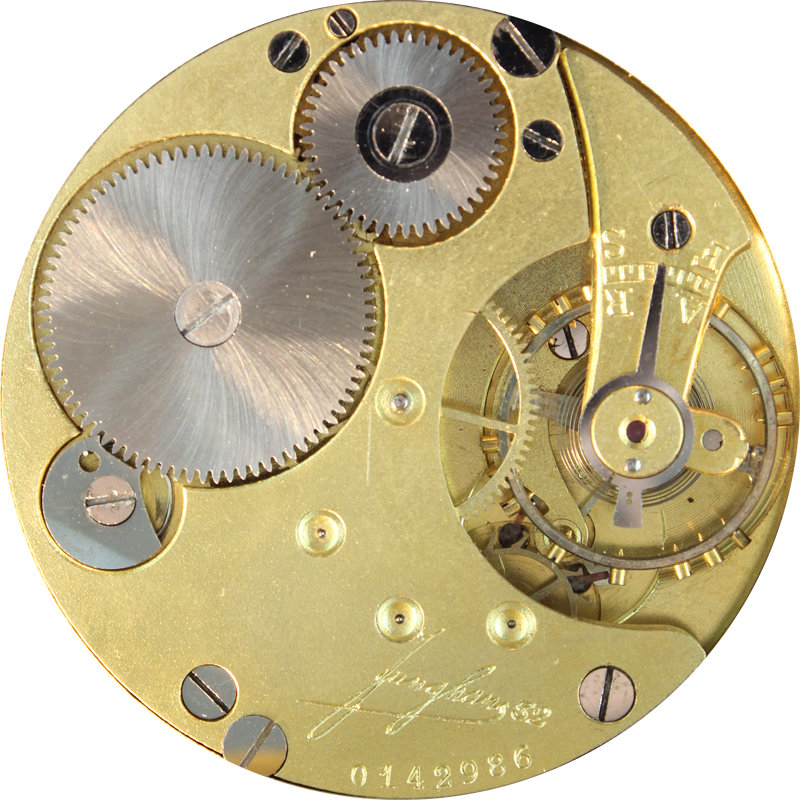

Watch Movement No. J32, 7 jewels, Breguet compensating hair spring, lever escapement with visible jewels, double safety roller, gilt plates, exactly regulated.
Page 16
Standard Watch
Movement No. J32 with 7 jewels, Breguet hair compensating spring, lever escapement with visible jewels, double safety roller, gilt plates
Case: White metal or silver with

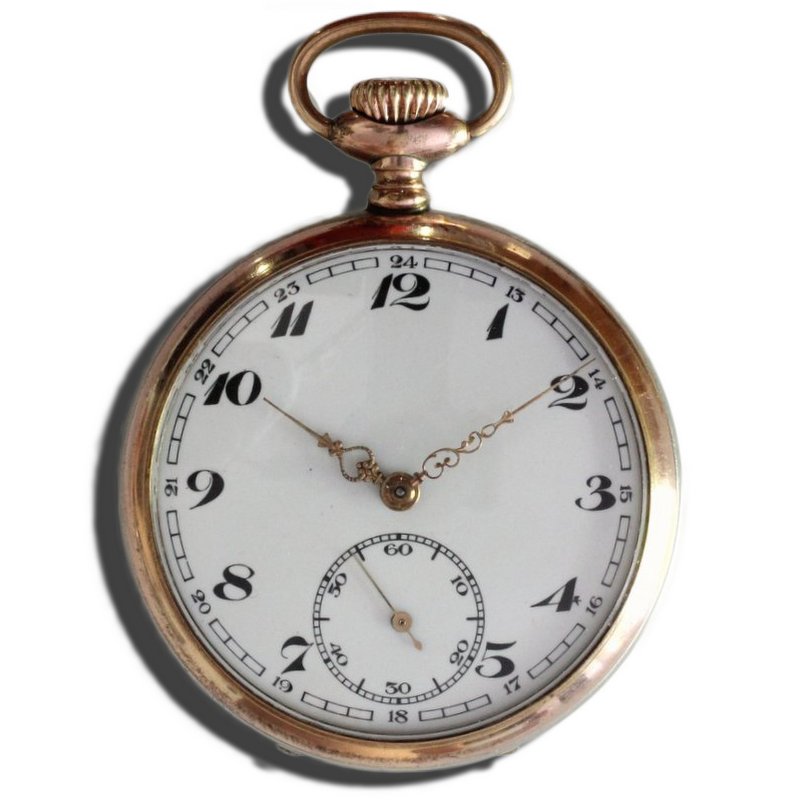

Dial: White enamel dial with or without Radium luminous figures (RZ)
Bow and crown: If white metal case: white metal
if silver cases: silver or galonné.
103/1 18 1/2''' - White metal plain
103/2 18 1/2''' - White metal engraved
103/3 18 1/2''' - White metal engraved and with gilt rim
103/4 19 1/2''' - White metal plain
103/5 19 1/2''' - White metal engraved
103/30 18 1/2''' - Silver with gilt rim 17gr., Inside dome of metal
These watches can also be supplied with Radium luminous figures (RZ)
 |  |
