Junghans Escapements
Junghans
J39
The construction goes back to 1927 and the production started 1935 according to the "1957 Junghans Werkliste" written with a typewriter found in the Schramberg Stadtmuseum.
The escapement J39 can be found in the follwing movments:
W64, W77, W146, W184, W200, W216, W232, W246, W278
J39a
J39g

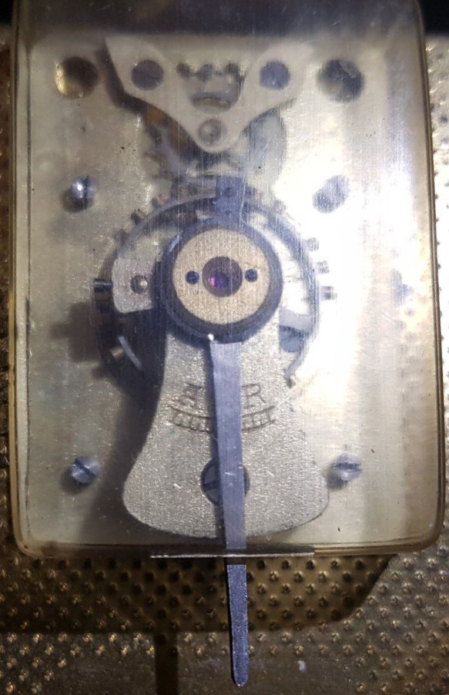

J39a on a W200

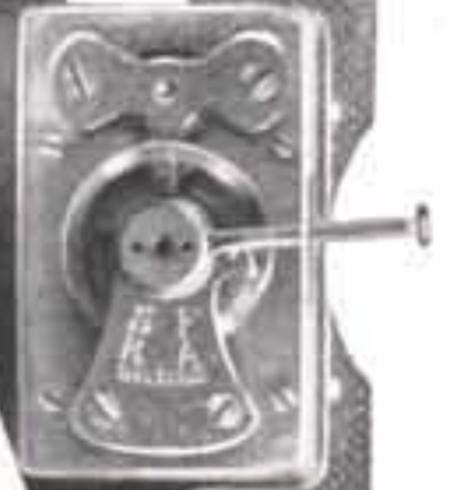

J64
The the production started 1932 according to the 1957 Junghans Werkliste written with a typewriter found in the Schramberg Stadtmuseum.
The escapement J64 can be found in the follwing movments:
W64, W68, W74, W77, W146, W184, W187, W200, W216, W232, W246, W278
J65
There is a movement W33 which clearly shows an escapement which I could not find a description of. The movement is depicted in the 1937 Furnituren catalog.
Also this escapement with no special name is shown in the 1957 Furnituren catalog on the W274/100 movement.
